| FS型臥式玻璃鋼防腐離心泵 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 詳細介紹: | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
一、FS型臥式玻璃鋼離心泵產品概述：
FS型臥式玻璃鋼離心泵，結構設計XJ合理，標準化程度高，零件通用性，互換性強，拆卸檢修十分方便。接觸介質的部件，采用聚乙烯醇縮丁醛改性酚醛玻璃纖維，經高溫模壓成形的酚醛玻璃鋼制件。FS型臥式玻璃鋼離心泵產品具有輕質、高強、不變形、耐溫、耐腐蝕等優良性能。FS型臥式玻璃鋼離心泵在防腐方面可部分替代含鉬不銹鋼，鈦及鈦合金等貴重金屬。
FS型臥式玻璃鋼離心泵軸封：采用WB2型外裝式F4波紋機械密封，密封可靠，使用時間長。
FS型臥式玻璃鋼離心泵傳動：泵通過爪型彈性聯軸器，由電動機直接驅動。
二、FS型臥式玻璃鋼離心泵,FS型軸聯玻璃鋼離心泵主要用途：
FS型軸聯玻璃鋼離心泵,主要用于石化、冶煉、染料、印染、農藥、制藥、X土、化肥等行業，輸送不含固體顆粒，不易結晶，FS型軸聯玻璃鋼離心泵溫度不高于100℃的各種非氧化性酸(鹽酸、X硫酸、甲酸、醋酸、丁酸)等腐蝕介質必不可少的理想設備。

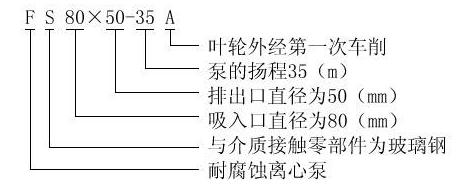

三、FS型臥式玻璃鋼離心泵,FS型軸聯玻璃鋼離心泵型號意義：
 FS型軸聯玻璃鋼離心泵,FS型臥式玻璃鋼離心泵性能參數
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
老款介紹：
|

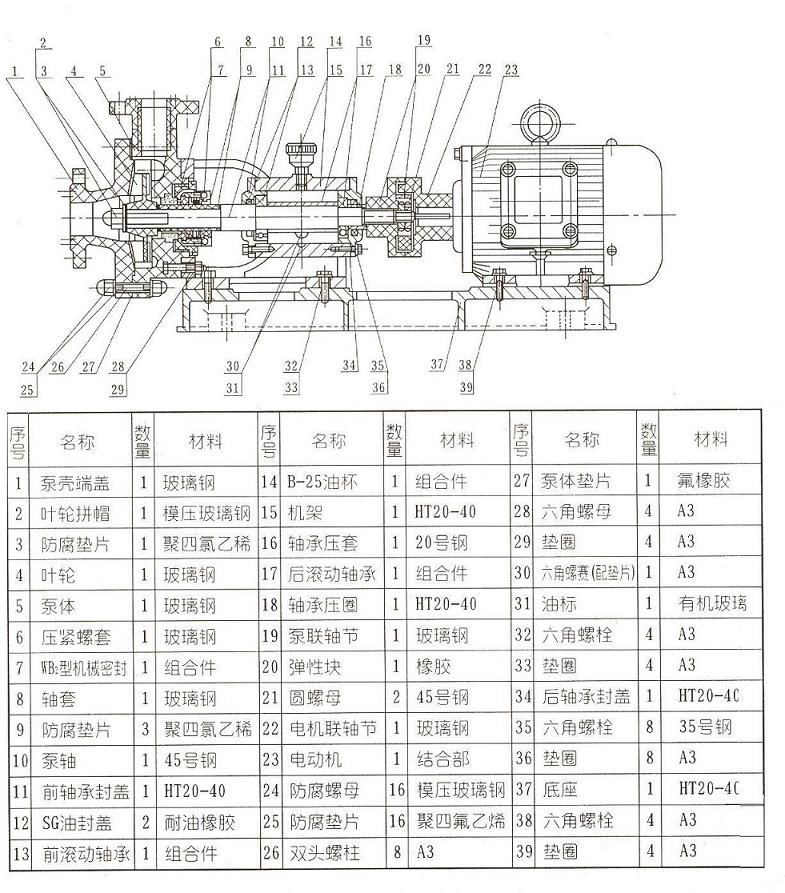

產品結構示意圖 |
 |
FS型臥式玻璃鋼離心泵,是本單位近幾年來研制開發的新產品,結構簡單設計合理,標準化程度高,零件通用性,互換性強,拆卸檢修十分方便。接觸介質的零部件,采用聚乙烯醇縮丁醛改性酚醛玻璃纖維,經高溫模壓成形的酚醛玻璃鋼制件。產品具有輕質、高強、不變形、耐溫、耐腐蝕等優良性能。在防腐方面可部分替代含鋁不銹鋼,鈦及鈦合金等貴重金屬。
軸封:采用WB2型外裝式F4波紋機械密封,密封性能可靠,使用時間長。
泵的傳動和旋轉方向:泵通過爪型彈性聯軸器,由電動機直接驅動,從電動機端看泵為順時針方向旋轉。
本泵主要用于石化、冶煉、染料、印染、農藥、制藥、X土、化肥等行業,輸送不含固體顆粒,不易結晶,溫度不高于100℃的各種非氧化性酸(鹽酸、X硫酸、甲酸、醋酸、丁酸)等腐蝕介質必不可少的理想設備。
The product summary :
Being this unit new product developed of nearer year , the simple design of structure is reasonably , and the standardization level is high , and interchaneability is strong to the part commonality , and it is very convenient to dismantle the maintenance to FS s mould horizontal tempered glass centrifugal pump . Contact the parts of medium , and uses the polyvinyl alcohol to contract the modified phenolic aldehyde glass fibre of Ding Quan , and mould pressinges the shaping phenolic aldehyde tempered glass finished piece through high temperature . The product possesses fine capabilitys such as light nature , excellings in , unchangeable shape and endure Wen s corrosion preventive etc . Han s aluminium stainless steel , valuable metals such as titanium and titanium alloy etc can be partly replaced at the aspect of preserve .
The axle is sealed : Using outside WB2 s mould loading type F4 s ripple machinery seals up , and it is reliable to seal up the capability , and uses that time is long .
Transmission and the revolving direction of pump : The pump is by way of the paw mould elasticity shaft coupling , and by electromotor direct drive , from the electromotor end is seen that the pump is the clockwise revolving .
The trades such as Shi Hua smelts , dyestuff , printing and dyeing , pesticide , pharmacy , rare soil and chemical fertilizer etc that this pump is chiefly used , carrys not Han s solid anything small and roundish , not easily crystallizes , the temperature not mores than various non- oxides of 100 ℃ acid ( hydrochloric acid , dilute sulfuric acid , formic acid , acetic acid and butyric acid ) etc the indispensable ideal equipment of corruption medium .
產品概述：
FS型臥式玻璃鋼離心泵,是本單位近幾年來研制開發的新產品,結構簡單設計合理,標準化程度高,零件通用性,互換性強,拆卸檢修十分方便。接觸介質的零部件,采用聚乙烯醇縮丁醛改性酚醛玻璃纖維,經高溫模壓成形的酚醛玻璃鋼制件。產品具有輕質、高強、不變形、耐溫、耐腐蝕等優良性能。在防腐方面可部分替代含鋁不銹鋼,鈦及鈦合金等貴重金屬。
軸封:采用WB2型外裝式F4波紋機械密封,密封性能可靠,使用時間長。
泵的傳動和旋轉方向:泵通過爪型彈性聯軸器,由電動機直接驅動,從電動機端看泵為順時針方向旋轉。
本泵主要用于石化、冶煉、染料、印染、農藥、制藥、X土、化肥等行業,輸送不含固體顆粒,不易結晶,溫度不高于100℃的各種非氧化性酸(鹽酸、X硫酸、甲酸、醋酸、丁酸)等腐蝕介質必不可少的理想設備。
The product summary :
Being this unit new product developed of nearer year , the simple design of structure is reasonably , and the standardization level is high , and interchaneability is strong to the part commonality , and it is very convenient to dismantle the maintenance to FS s mould horizontal tempered glass centrifugal pump . Contact the parts of medium , and uses the polyvinyl alcohol to contract the modified phenolic aldehyde glass fibre of Ding Quan , and mould pressinges the shaping phenolic aldehyde tempered glass finished piece through high temperature . The product possesses fine capabilitys such as light nature , excellings in , unchangeable shape and endure Wen s corrosion preventive etc . Han s aluminium stainless steel , valuable metals such as titanium and titanium alloy etc can be partly replaced at the aspect of preserve .
The axle is sealed : Using outside WB2 s mould loading type F4 s ripple machinery seals up , and it is reliable to seal up the capability , and uses that time is long .
Transmission and the revolving direction of pump : The pump is by way of the paw mould elasticity shaft coupling , and by electromotor direct drive , from the electromotor end is seen that the pump is the clockwise revolving .
The trades such as Shi Hua smelts , dyestuff , printing and dyeing , pesticide , pharmacy , rare soil and chemical fertilizer etc that this pump is chiefly used , carrys not Han s solid anything small and roundish , not easily crystallizes , the temperature not mores than various non- oxides of 100 ℃ acid ( hydrochloric acid , dilute sulfuric acid , formic acid , acetic acid and butyric acid ) etc the indispensable ideal equipment of corruption medium .
