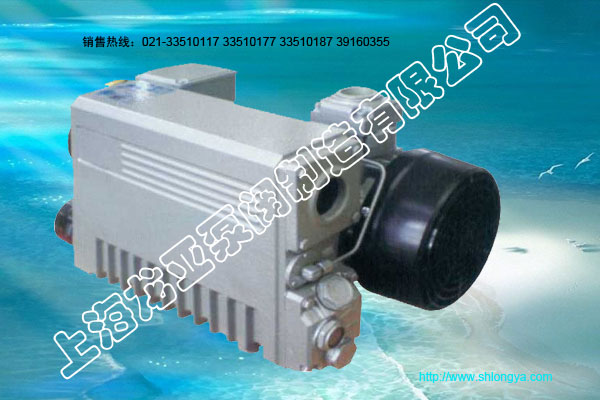

XMV系列單級旋片真空泵
XMV-10/21/25 單級旋片真空泵
XMV-10/21/25 single-stage rotary vane vacuum pump
XMV-10/21/25 單級旋片真空泵技術參數
XMV-10/21/25 Technical parameter for single-stage rotary vane vacuum pump
| 項目/型號 | 單位(Units) | XMV-10 | XMV-21 | XMV-25 |
| 額定抽速/Rated Speed | m/h | 10 | 21 | 25 |
| 極限壓力/Utmost Pressure | mbar | 0.1-0.5 | 0.1-0.5 | 0.1-0.5 |
| 噪音/Noise | dB(A) | 61 | 62 | 62 |
| 工作溫度/Work temperature for oil | C | 81 | 82 | 82 |
| 用油量/oil consumption | L | 1 | 1 | 1 |
| 水蒸氣允許壓力/Vapor permitted pressure mbar | mbar | 40 | 40 | 40 |
| 水蒸氣抽除率/Suction rate of vapour | kg/h | 0.15 | 0.3 | 0.4 |
| 進氣口螺紋/Concction of inlet | inch | Rp3/4" | Rp3/4" | Rp3/4" |
| 電機額定功率/Motor rated power | kW | 0.37 | 0.75 | 1.1 |
| 電機額定轉速/Motor rated rotating speed | rpm | 1440 | 2880 | 2880 |
| 整機重量/Total weight | kg | 17 | 18 | 19 |
| 外行尺寸/Vacuum pump size | cm | 46.5×23.2×20 | 47.3×23.2×20 | 48×23.2×20 |
| 尺寸 Dimensions |
A | B | C | D | E | F | G | H | I |
| XMV-10 | 232 | 213 | 26 | 130 | 200 | 465 | 210 | 30 | 117 |
| XMV-21 | 232 | 213 | 26 | 130 | 200 | 473 | 210 | 30 | 117 |
| XMV-25 | 232 | 213 | 26 | 130 | 200 | 480 | 210 | 30 | 117 |
XMV-40/63/100 單級旋片真空泵
XMV-40/63/100 single-stage rotary vane vacuum pump
XMV-40/63/100 單級旋片真空泵技術參數
XMV-40/63/100 Technical parameter for single-stage rotary vane vacuum pump
| 型號MODEL 項目ITEMS |
單位(Units) | XMV-40 | XMV-63 | XMV-80 | XMV-100 |
| 額定抽速/Rated Speed | m/h | 40 | 63 | 80 | 100 |
| 極限壓力/Utmost Pressure | mbar | 0.1-0.5 | 0.1-0.5 | 0.1-0.5 | 0.1-0.5 |
| 噪音/Noise | dB(A) | 64 | 65 | 65 | 66 |
| 工作溫度/Work temperature for oil | C | 83 | 85 | 85 | 85 |
| 用油量/oil consumption | L | 1 | 2 | 2 | 2 |
| 水蒸氣允許壓力/Vapor permitted pressure mbar | mbar | 40 | 40 | 40 | 40 |
| 水蒸氣抽除率/Suction rate of vapour | kg/h | 0.6 | 1 | 1 | 1.6 |
| 進氣口螺紋/Concction of inlet | inch | Rp1/4" | Rp1/4" | Rp1/4" | Rp1/4" |
| 電機額定功率/Motor rated power | kW | 1.5 | 1.5 | 1.5 | 3 |
| 電機額定轉速/Motor rated rotating speed | rpm | 1440 | 1440 | 1440 | 1440 |
| 整機重量/Total weight | kg | 48 | 58 | 58 | 72 |
| 外行尺寸/Vacuum pump size | cm | 65×30×28 | 65×43×29.5 | 65×43×29.5 | 72×43×29.5 |
XMV-63/100單級旋片真空泵
XMV-63/100 single-stage rotary vane vacuum pump
安裝尺寸/Mounting Dimensions
| 尺寸 Dimensions |
A | B | C | D | E | F | G | H |
| XMV-40 | 650 | 150 | 337 | 195 | 270 | 225 | 300 | 280 |
| XMV-63 | 650 | 150 | 325 | 295 | 285 | 273 | 430 | 295 |
| XMV-80 | 650 | 150 | 325 | 295 | 285 | 273 | 430 | 295 |
| XMV-100 | 720 | 180 | 350 | 295 | 285 | 273 | 430 | 295 |

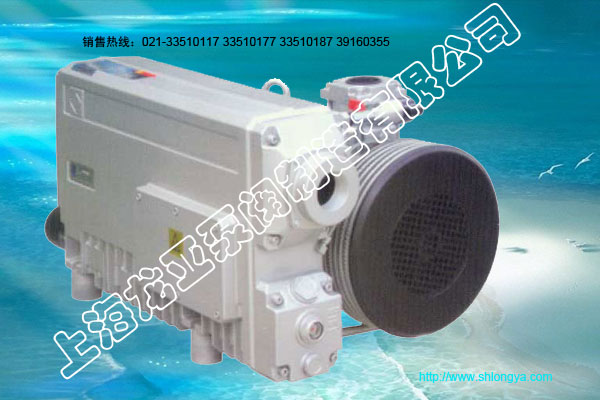

XMV-160/302 單級旋片真空泵
XMV-160/302 single-stage rotary vane vacuum pump
XMV-160/202/250/302 單級旋片真空泵技術參數
XMV-160/202/250/302 Technical parameter for single-stage rotary vane vacuum pump
| 項目ITEMS/型號MODEL | 單位(Units) | XMV-160 | XMV-202 | XMV-250 | XMV-302 |
| 額定抽速/Rated Speed | m/h | 160 | 200 | 250 | 300 |
| 極限壓力/Utmost Pressure | mbar | 0.1 | 0.1 | 0.1 | 0.1 |
| 噪音/Noise | dB(A) | 71 | 73 | 73 | 75 |
| 工作溫度/Work temperature for oil | C | 65 | 72 | 81 | 83 |
| 用油量/oil consumption | L | 5 | 5 | 7 | 7 |
| 水蒸氣允許壓力/ Vapor permitted pressure mbar |
mbar | 40 | 40 | 40 | 40 |
| 水蒸氣抽除率/Suction rate of vapour | kg/h | 2.5 | 4 | 4.5 | 5 |
| 進氣口螺紋/Concction of inlet | inch | Rp2" | Rp2" | Rp2" | Rp2" |
| 電機額定功率/Motor rated power | kW | 4 | 4.5 | 5.5 | 7.5 |
| 電機額定轉速/Motor rated rotating speed | rpm | 1440 | 1440 | 1440 | 1440 |
| 整機重量/Total weight | kg | 157 | 157 | 195 | 211 |
| 外行尺寸/Vacuum pump size | cm | 85.5×49.5×43.5 | 85.5×49.5×43.5 | 98×56×44 | 101×56×44 |

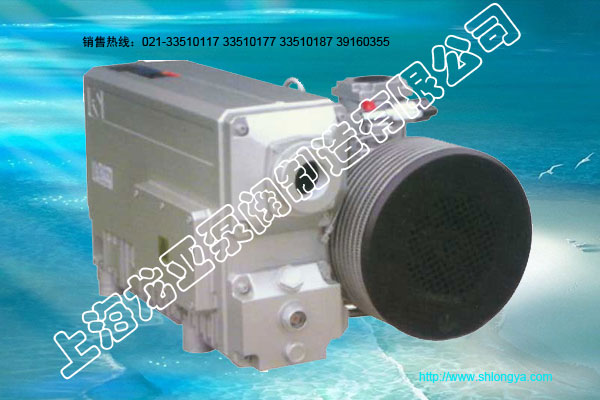

XMV-160/202/250/302 單級旋片真空泵
XMV-160/302 single-stage rotary vane vacuum pump

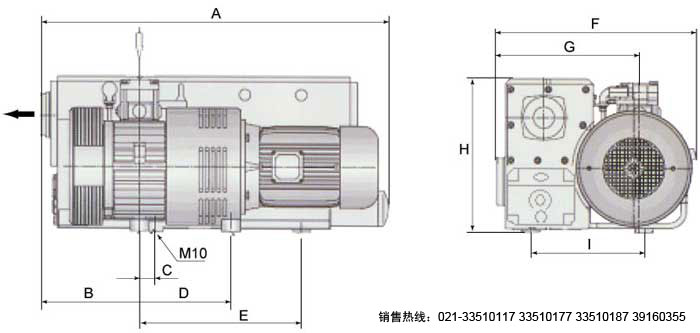

安裝尺寸/Mounting Dimensions
| 尺寸 Dimensions |
A | B | C | D | E | F | G | H | I |
| XMV-160 | 855 | 225 | 35 | 240 | 420 | 495 | 345 | 435 | 310 |
| XMV-202 | 855 | 225 | 35 | 240 | 420 | 495 | 345 | 435 | 310 |
| XMV-250 | 980 | 260 | 40 | 300 | 390 | 560 | 385 | 440 | 355 |
| XMV-302 | 1010 | 260 | 40 | 300 | 390 | 560 | 385 | 440 | 355 |
XMV型單級旋片真空機組
XMV series single stage rotary vane vacuum pump set
概述/Summarization
XMV單級旋片真空機組是選用一臺或一臺以上XMV型單級旋片式真空泵進行合理組合，配上緩沖儲氣罐和配電箱，成為一套新型的真空抽氣設備，從而彌補了原來真空泵在使用上的不足。其優點有：
加大抽氣量——由一臺真空泵和一個緩沖儲氣罐的組合就可以增加總的（瞬時）抽氣量。
節約電能源——由一個緩沖儲氣罐，配上真空表的控制就可以節約能源。（根據用戶的實際情況）
提高使用壽命——真空泵使用可以降低真空泵的溫升，泵不會過熱；真空表控制真空可以減少真空泵運行時間；緩沖儲氣罐加上進氣過濾器可以減少異物和微顆粒狀固體進入真空泵。
Xtype single. stage rotary vane vacuum unit is a suction of one or more than one X type single stage rotary vane vacuum pump for the rational combination, with a buffer tank and distribution boxes, into a new type of vacuum exhaust set up Prepared in order to make up for the original in the use of vacuum pump deficiency. Has its advantages;
Enlarge the capacity of suction ---- It can increase the total or instant suction using two or above vacuum pumps and a buffering air tank.
Save electrical power... ---- It can make this with a buffering air tank equipped with vacuum meter. (It depends on the actual circumstance)
Extent its using life... ---- It can reduce the raise of pump's temperature to prevent over-heating. It cuts the rumming time under the control of vacuum meter. It can prevent foreign matter or granule entering the vacuum pump with buffering air tank and inlet filter.
概述/Summarization
XMV型單級旋片真空機組使用于溫度為5-30℃。濕度小于80%的環境中，XMV型單級旋片真空機組能抽除低于1個大氣壓的空氣和其它工礦企業中不含有酸性腐蝕氣體，有毒、易燃、易爆氣體及對真空泵油有有破壞作用的氣體。
XMV型單級旋片真空機組可用于真空吸塑、真空包裝、真空排氣、真空脫氣、真空吸引、真空蒸餾、真空分離、真空成型、真空澆鑄、真空運輸、真空保護、熱處理和焊接等工藝。
XMV型單級旋片真空機組廣泛應用于醫院、制鞋工業、機械、化工、電子、紡織，印刷等行業中。
XMV型單級旋片真空機組還可以組合成其它多種形式，進一步擴大它的使用范圍；
1、加大抽氣量
2、抽除大量的水蒸氣
X series Vacuum pump is suitable for applyig on the environment of temperature between 5-30℃ and humidity less than 80%, our X series vacuum pump is capable to deflate air less than one atmosphere from vessel, it is prohibited to use for the gas with acidity, cauterization, toxin, flammability, explosive and any elements which can court damage of pump.
X series single ---- grade rotating patch vacuum pump can be applied to the work of vacuum absorbing plastic film, vacuum packing, vacuum exhausting, vacuum Air ---- Eliminating, vacuum suction, vacuum distillation, vacuum abruptionvacuum molding, vacuum casting, vacuum transportation, vacuum heat treatment and welding etc. the applicable field includes hospital, machine, chemical, metallurgy, electron, electric, press & textile etc. X series singlestage rotary vane pump also can be combined according to using ---- purpose to enlarge use range:
1、Enlarge deflating capacity
2、Suck mass of vapour
XMV型單級旋片真空機組
XMV series single stage rotary vane vacuum pump set
XMV-40/63/100/160/202 單級旋片真空泵技術參數
XMV-40/63/100/160/202 Technical parameter for single-stage rotary vane vacuum pump
| 型號MODEL 項目ITEMS |
單位(Units) | XMV-40 | XMV-63 | XMV-100 | XMV-160 | XMV-202 |
| 額定抽速/Rated Speed | m/h | 40 | 63 | 100 | 160 | 202 |
| 極限壓力/Utmost Pressure | mbar | 0.1-0.5 | 0.1-0.5 | 0.1-0.5 | 0.1-0.5 | 0.1-0.5 |
| 泵的配置/configuration | 臺 | XMV-40 | XMV-63 | XMV-100 | XMV-160 | XMV-202 |
| 排氣口尺寸/Work temperature for oil | inch | 1*G11/4" | 2*G11/4" | 2*G11/4" | 1*G2" | 1*G2" |
| 儲氣罐容積/oil consumption | L | 130 | 250 | 250 | 500 | 500 |
| 進氣口尺寸/Work temperature for oil | inch | G11/4" | G11/4" | G11/4" | G2" | G2" |
| 電機額定功率/Motor rated power | Kw | 1.5 | 1.5 | 3 | 4 | 4 |
| 整機重量/Total weight | Kg | 115 | 150 | 164 | 317 | 317 |
| 外行尺寸/Vacuum pump size | cm | 124×41×99 | 150×51×115 | 150×51×115 | 179×66×154 | 179×66×154 |
根據客戶的具體需求，我公司可以設計不同組合形式的機組
According to customer's specific needs, our company can design different combinations of pump set.
