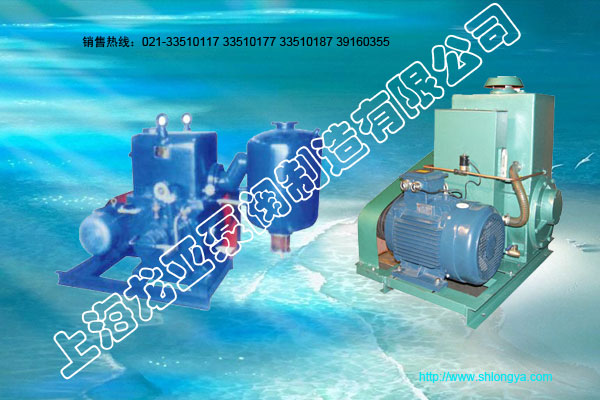

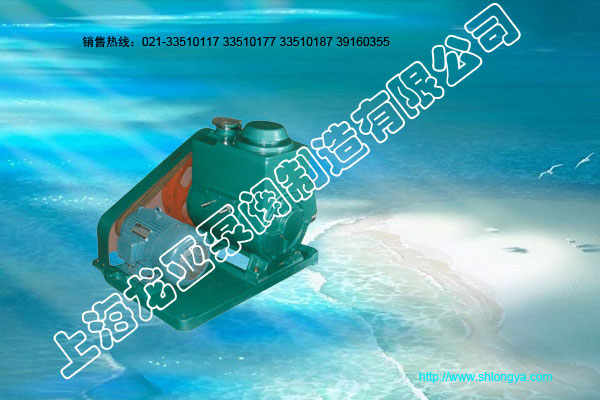

X-100與X-150旋片式真空泵
旋片真空泵.jpg)
X-100B/150B單級旋片真空泵規格參數：
| 型號 Model | X-150B | X-100B | 型號 Model | X-150B | X-100B | |
| 抽氣速率 Pumping Speed(L/S) | 150 | 100 | 水蒸汽抽除率 vapour pumping rate (Kg/h) |
14 | 10 | |
| 極限壓力 ultimate vacuum (Pa) |
氣鎮關 Without gass ballast |
＜0.8 | ＜0.8 | 噪聲 Noise (Lp) | 70dB(A) | 68dB(A) |
| 氣鎮開 With gass ballast |
＜15 | ＜15 | 冷卻水需要量 Cooling water consumption (L/h) |
＞200 | ＞200 | |
| 轉速 Speed (r/min) | 345 | 400 | Z高工作油量 The highest oil temperature in operation (℃) |
80 | 80 | |
| 電動機功率 Motor Power (Kw) | 15 | 7.5 | 用油量 Overall dimension (mm) | 45 | 30 | |
| 進（排）氣口直徑 inlet (oulet)dia (mm) | DN100ISO | 外形尺寸 Overall dimension(mm) | 1907×1110×1177 | 1554×854.5×972 | ||
| 重量 Weight (Kg) | 1100 | 700 | ||||
|
